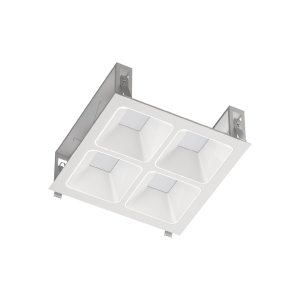

Products Name：Puzzle Downlight
Product Number：NM409-R3703
Light Source：LED
Wattage：In Description
Description：
Product No. : NM409-R3703
Housing :
Frame- 1.0t integrally formed iron plate with high-quality white powder coated.
Louver- PC louver, featuring fire-resistant and flame retardant (V-0 grade)
Dimension : 304 x 305 x 104 mm
Input Voltage : AC 110V / 220V
Power Consumption : 18W / 13W / 9W
Luminous Efficacy : 131 lm / 138 lm / 147 lm (+-3%)
Luminous Flux : 2350 lm / 1820 lm /1320 lm (+-3%)
Power Factor : ≥0.9
Color Temperature : 3000K, 4000K, 5000K
CRI : >80
Dimming : DALI Dimming / 0-10v Dimming / Non-dimming
Luminance Decrease : 50000 h before luminous flux is reduced to 80%.
Installation Method : Recessed
Operation Temperature : Celsius 0°C ~ 40°C
Taiwan Certification:
BSMI CNS certification: CI3A006979004001
